SERIES10009ENC
SERIES10012ENC
SERIES10015MT4E
S10020J4ENC

Kubota-10012.jpg (27070 bytes) Kubota-10012inside.jpg (54127 bytes) Kubota-10012connect.jpg (45926 bytes) EPS-MCSpanels.gif (27465 bytes)

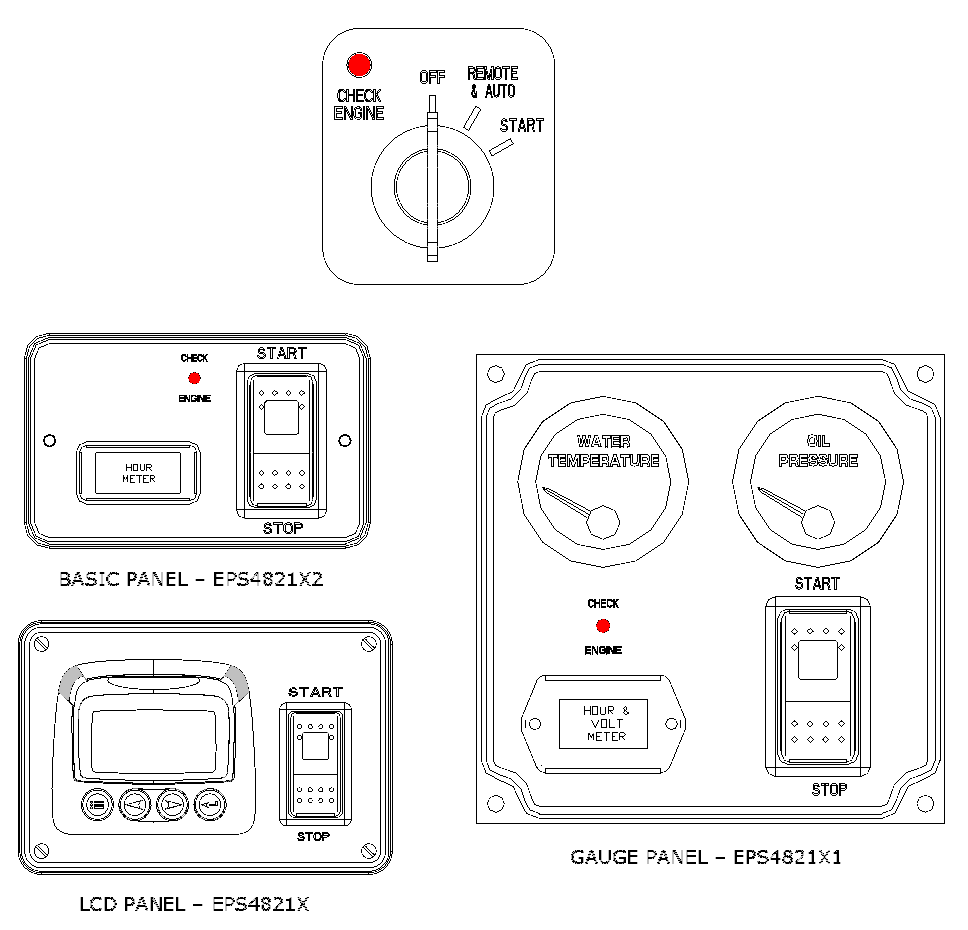

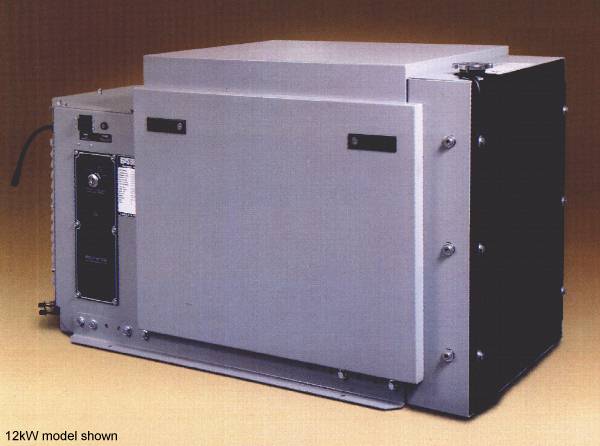

outside view door removed for single side service convenient fuel and battery connections optional remote start/stop panels
click thumbnail images above to enlarge


Kubota Generator Set
Mobile Quiet Diesel
9kW, 12kW, 15kW, 20kW rated
120/240Vac single phase

(three phase available on selected units)

Kubota enclosed mobile auxiliary generators are unique in the market today.  Designed to overcome common shortcomings found in many competitive units, they offer rugged commercial construction, verifiable output ratings, easy installation and maintenance, and a very attractive price.  All of which makes them an outstanding value for the money.

Standard Features


Specifications

Model Number SERIES10009ENC SERIES10012ENC SERIES10015MT4E S10020J4ENC
Electrical Power Output 9.0kW standby
8.0kW continuous
12.0kW standby
11.0kW continuous
14.0kW standby
13.3kW continuous
20.9kW standby
19.4kW continuous
Voltage (single phase) 120/240Vac 120/240Vac 120/240Vac 120/240Vac
Maximum Current (Amps @ 120/240V single phase) 80 / 40 100 / 50 111 / 55 162 / 81
Generator End (single phase) Marathon
333CSA3020
Marathon
333CSA3024
Marathon
333CSA3024
Marathon
334CSB3028
Voltage Regulation AVR Controlled
SE350
AVR Controlled
SE350
AVR Controlled
SE350
AVR Controlled
SE
Exciter Brushless Brushless Brushless Brushless
Insulation Class F F F F
Engine Kubota
D1105BG
Kubota
V1505BG
Kubota
D1503-M-E4BG
Kubota
D1803TI-E4G
EPA Certification Tier IV final Tier IV final Tier IV final Tier IV final
Fuel Consumption - gallons per hour
(at 25% / 50% 100% load)
0.31/0.49/0.80 0.46/0.73/1.19 0.46/0.82/1.43 0.34/0.68/1.50
Sound Level - dbA
(50% / 100% load)
-- / -- 67.5 / 68.4 67.5 / 68.4 70.7 / 70.3

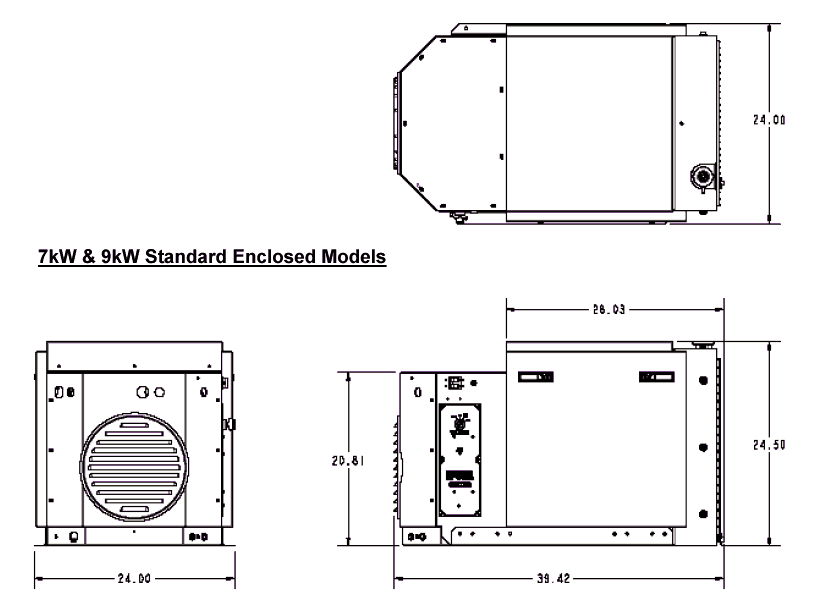

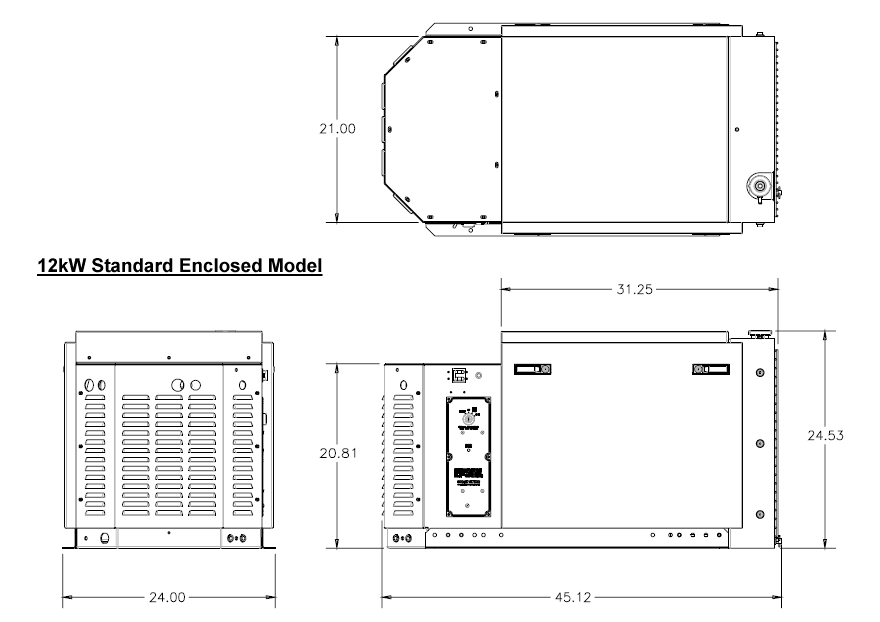

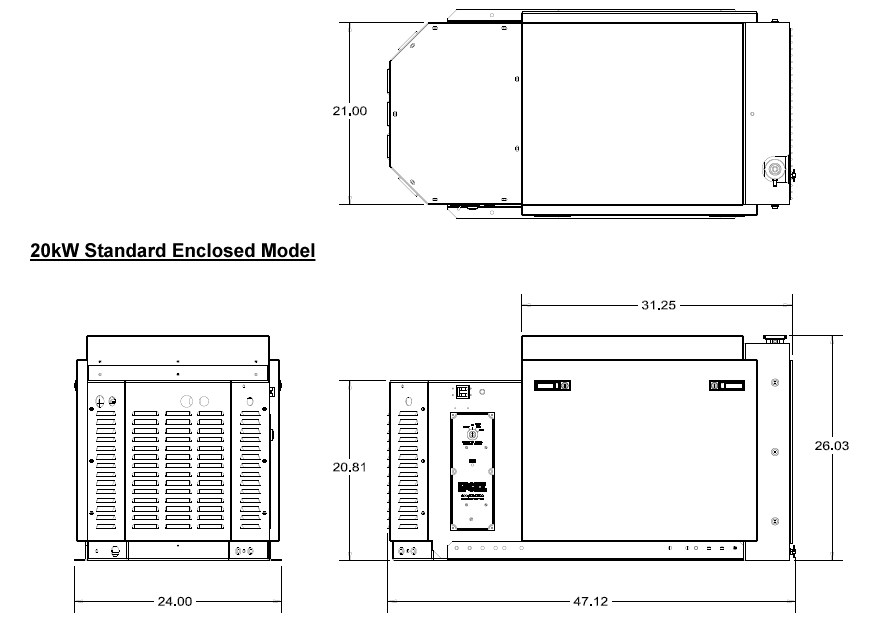

Dimensions (L x W x H) inches ** 39.4x24.0x24.5 45.1x24.0x24.5 44.2x25.8x26.0 58.1x25.8x28.8
Weight - including oil & coolant (lbs) ** 635 728 888 1,169

NOTES:
All units ratings are established at 1.0 power factor, 68F and 500ft elevation above sea level.  Derate unit by 3.5% for every 1000ft above 500ft and 1% for every 10F above 68F.
Sound level tests were performed on a unit in an open environment, pusher fan model with all 5 generator cooling vents open.  A typical installation will result in lower sound levels.
** Dimensions and weight information are for single phase.  Three phase units are slightly longer.



If generator is mounted in an open well-ventilated area the side roller frame and air duct kit are not normally needed.  However, if the generator is mounted in an enclosed compartment then these accessories may be required.

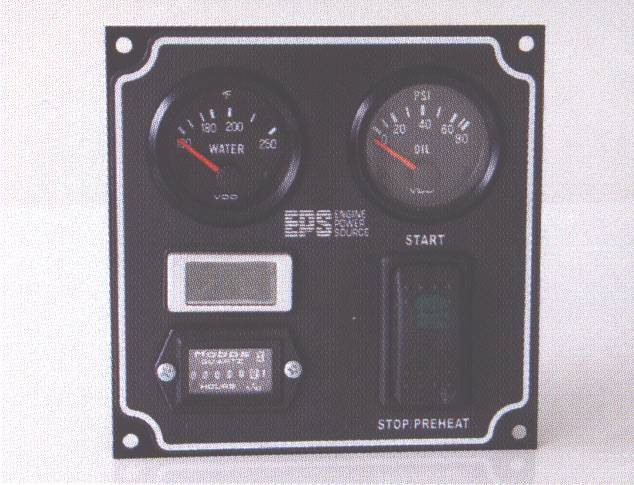

If two-wire control for auto start is needed such as for interfacing with an automatic transfer switch, a remote panel option must be purchased.

DOT rated trailer kits are also available for these generators at this page link.

Reduce generator run-time and fuel consumption with solar assist for battery bank charging.  RV Solar Kits PFM-1K, PFM-2K
