PTO30-25

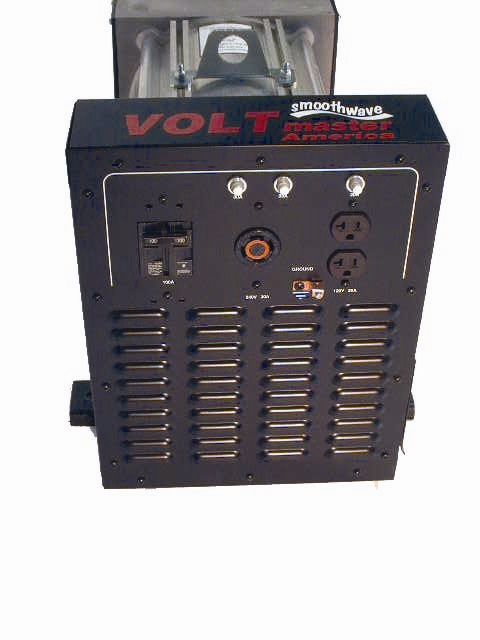

Click thumbnail image
above to enlarge

25KW Power Take-Off Generator

VOLT master America PTO Generators are designed as a standby electrical power supply for farm applications or any site that has an engine with a power take-off.  They can utilize a 24 hp or larger power take-off from tractors, bulldozers, or trucks as the prime mover.  Units are equipped with a single-stage gear box ratio design that operates generator at 3600 rpm for longer life, quieter operation, and smoother running.



Features

* Brushless two pole generator with capacitor and copper windings.

* The low harmonic content (less than 6-9%) is safe for sensitive loads such as computer,
   tv, electronics, yet powerful enough to run motor loads such as your well pump or
   air conditioner.

* Thermal magnetic circuit breakers protect from overloads and short circuits.

* Voltmeter assists in setting tractor speed and monitors output.

* One full power 240V plug included.

* Rugged gear case with a standard 1-3/8" six-spline 540 rpm input shaft stub
   and safety shield.  Telescoping PTO shaft kit must be purchased separately.



Accessories (order separately below)

* 1-3/8" six spline pto shaft

* Two-wheel trailer

* Three point hitch



Specs

Rated AC Power 25 kW
Surge AC Power 30 kW
AC Current at 240 V 104 amps (125 amps surge)
Rated Voltage 120/240 V, 1 phase
Output Circuit Breakers yes
Receptacles at 120V (qty) (2) NEMA 20A 5-20R
Receptacles at 120/ 240V (qty) (1) NEMA 30A L1430R
(1) full power output connector
plug included for this receptacle
PTO Speed 540 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 50 hp *
Motor Starting Capability 10 hp (code G)
Manufacturer's Warranty 1 year

* A lower PTO shaft hp rating is acceptable but
electrical output will be proportionally less.
