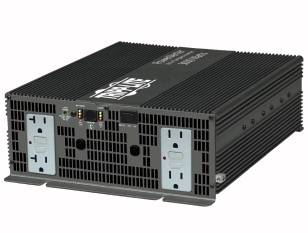

Inverter - 3000/6000 Watts
Tripp Lite PowerVerter® Ultra Compact Inverters
Permanent Mount & Portable DC-to-AC Inverters
Ultra Compact PowerVerters pack reliable inverter technology into a durable, lightweight extruded aluminum housing small enough to take anywhere. The result is an AC power source you can move easily from vehicle to vehicle, wherever you need to use your equipment.
Ideal for Computer Equipment
Ultra Compact PowerVerters are simple to connect and integrate a host of sophisticated features to ensure that connected electronic equipment receives a constant, safe AC current. The frequency- controlled, computer-grade power they provide is less likely to damage sensitive electronics than the unpredictable output of a generator, making them ideal for use with mobile uplinks and other computer equipment in a vehicle.
Portable and Permanent Mount Models
Designed with the needs of the mobile executive in mind, the smallest
PowerVerter models (PV 140 and 300) fit easily in a briefcase with a laptop computer. They
feature cigarette lighter input plugs for simple connection and disconnection to a
vehicle's dashboard. The midrange PV 500 can be stored under a seat or in a glove
compartment when not in use, and features quick-connect battery clips. The most powerful
PowerVerter Ultra Compact models (PV 1000HF and PV 1800HF) have permanent mounting
brackets and hardwired battery connections, making them ideal for use with house battery
arrays in RVs, trailers and boats. DC battery cables and protective fuse can be
purchased separately. See SK-200.
Before you buy any modified sine wave inverter such as this unit read about the possible effects on your appliances and listen to the difference compared to true pure sine wave inverters. Click here for more.
Click for manufacturer's sizing guide (2.2 MB pdf file)
|Continuous Power Output (Watts)||3000|
|Peak Power Output (Watts)||6000|
|Nominal Output Voltage (Volts AC)||120|
|Nominal Output Frequency (Hz)||60|
|Output Wave Form||Modified Sine Wave|
|Nominal Input Voltage (Volts DC)||12|
|Number of NEMA 5-15 Outlets||4|
|Low Battery Alarm Setting (Volts DC)||10.5|
|DC Protective Fuses||yes|
|Factory Warranty||1 year|
|Dimensions (H x W x D)||4.3" x 12.5" x 14.8"|
These inverters must be powered from a negative ground electrical system. All passenger vehicles manufactured in the U.S.A. after 1955, and in Europe and Asia after 1971 have negative ground systems and are acceptable.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Isolation transformer and transfer switch is required if connecting to home breaker panel. Email us for recommendations.
