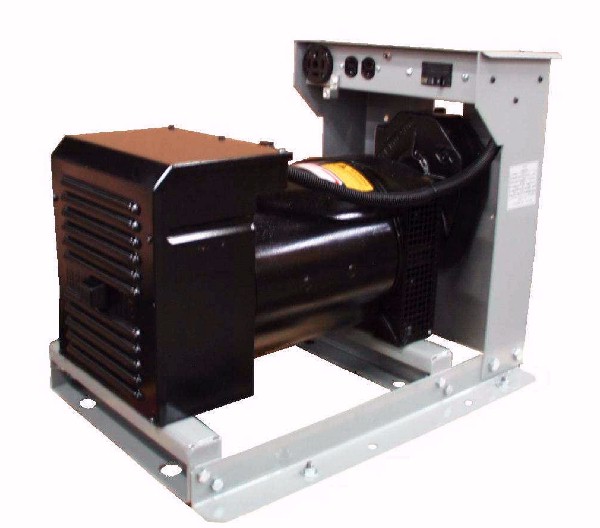

15KW Power Take-Off Generator
Compact Design

Compact PTO Generators are designed as a standby electrical power supply for farm applications or any site that has an engine with a power take-off.  They can utilize a 12 to 40 hp power take-off from tractors, bulldozers, or trucks as the prime mover.  Units are equipped with a single-stage gear box ratio design that operates generator at 3600 rpm for longer life, quieter operation, and smoother running.

* Brushless rotating field two pole alternator with 100% copper windings.
15kW continuous 18kW max 12-lead alternator reconnectable for other single and three phase voltages.
* The low harmonic content (less than 8%) is safe for sensitive loads such as computer,
   tv, electronics, yet powerful enough to run motor loads such as your well pump or
   air conditioner.
* Large frequency meter viewable from tractor seat assists in setting tractor speed and monitors output.
* Electronic voltage regulator maintains output voltage in a narrow band.  Quickly restores output voltage after
   large load changes.

* Rugged cast iron helical gear case with a standard 1-3/8" six-spline 540 rpm input shaft.
* Frame consists of heavy 12 gauge steel construction.
* Safety shield for pto connection.
* Lifting eye.

Accessories (order separately)
* 1-3/8" six spline pto shaft is fully guarded for safety.
* Two-wheel transport offers heavy 5/16" gauge hitch that can handle the rigors of
   generator operation.  Heavy 10 gauge deck allows room for accessories or tool box.
* Three point hitch offers heavy duty 10 gauge steel construction.



Rated AC Power 15 kW
Surge AC Power 18 kVA
(see footnote)
Rotating Field Brushless Design
15kW continuous 18kW max 12-lead alternator reconnectable for other single and three phase voltages
Electronic Voltage Regulator yes
AC Current at 240 V 60 amps (83 amps surge)
Rated Voltage 120/240 V, 1 phase
Output Circuit Breakers yes
Receptacles at 120V (qty) (2) NEMA 5-20R
Receptacles at 240V (qty) (1) NEMA 14-60R
plug included for this receptacle
PTO Speed 540 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 30 hp
A lower PTO shaft hp rating is acceptable but

electrical output will be proportionally less.
Motor Starting Capability 8 hp (code G)
Manufacturer's Warranty 1 year
FOOTNOTE: Generator alternator ships from the factory connected for 120/240Vac single phase output.  To convert to another voltage or to three phase output you must consult a knowledgeable electrician.  In most cases the receptacles will need to be disconnected and a different size output breaker added.
