Page last updated Oct 20, 2021 @ 10:10pm


unit photo outline drawing extremely rugged brochure
click on thumbnail image above to enlarge

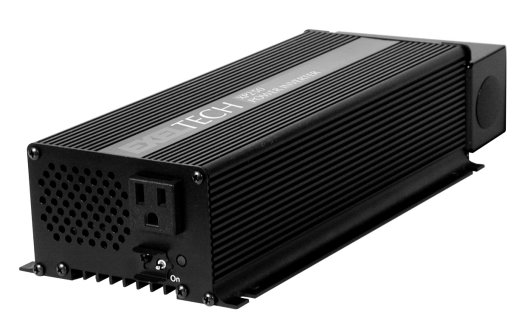

Sine Wave Inverter
250 watts continuous, 300 Watts surge

Made in America, EXELTECH XP SERIES INVERTERS are the most affordable, reliable, lightweight and best regulated, true sine wave inverters available. The XP SERIES inverter will operate any AC load anywhere. Ultra lightweight, yet rugged enough for the most extreme mobile environments, and are UL listed to 1950 for telecom applications.

- True Sine Wave

- 125 Watts to 1100 Watts

- 12 Vdc to 108 Vdc Input

- Rack Mount Optional

- Remote Switching

- 21.5 Years mean time before failure (MTBF) - ultra reliability and long life

Exeltech XP inverters feature sophisticated protection circuitry, making them immune from damage by overloads, short circuits, over temperature and input polarity reversal.  These units are excellent for  telecommunications, audio recording equipment, or any loads that require an excellent waveform.  For the advantages of sine wave inverters click here.  XP inverters can run on high charging voltages needed to charge alkaline batteries.   Models also available in 32, 66 and 108 VDC input versions.  One year parts and labor warranty.  Made in USA

This unit is suitable for powering medium size ac appliances from a dc source such as a vehicle electrical system and/or battery bank.  In addition to use for home backup power, it is also great for your camping, RV or boating needs.



Continuous Power Output 250 watts
Surge Rating 300 watts
DC Input Voltage 12VDC, 24VDC, 48VDC (approx -13% to +30%)
32V, 66V, 108V special order
AC Output Voltage 120Vac +6%
Output Frequency 60Hz +0.1%
Total harmonic distortion (THD) 1.5% typical, 2% max
Efficiency at full load 85% at 12Vdc
87% at 24Vdc
Efficiency at 1/3 load 87% at 12Vdc
89% at 24Vdc
No Load Power 6 watts
Output Wave Form Pure Sine Wave
Dimensions (L x W x H) 5.2" x 2.8" x 10.4"


This inverter must be powered from a negative ground electrical system.   All passenger vehicles manufactured in the U.S.A. after 1955, and in Europe and Asia after 1971 have negative ground systems and are acceptable.



Item Number: XP250
Price: $568
Price last updated 11/4/2014
Shipping Weight: 7 lbs.
This item normally ships in approximately 1 week or less.
