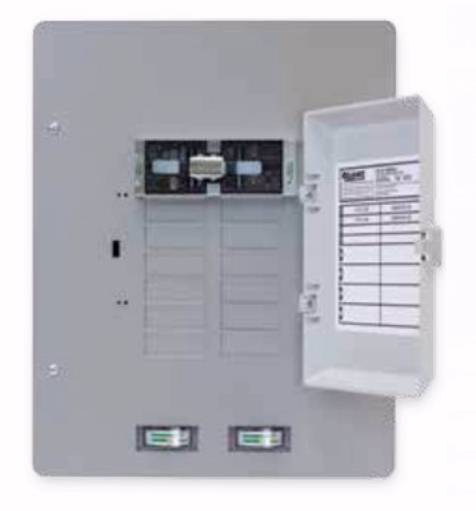

Manual Transfer Panel
with neutral switching
The sequentially-switched neutral means you can switch between a portable generator and utility power without the danger of sending 240 Volts to a 120V circuit.
The Reliance Panel/Link X Series is a double-pole manual transfer switch with an exclusive third-pole for the neutral that switches sequentially. The X Series is perfect for use with generators having GFCI protected full power outlets, bonded neutral generators and installations requiring a separately-derived system as defined in the National Electric Code.This product works with portable generators that have GFCI protection on all outlets. This is a new requirement in Canada and in the USA for portable generators designed to comply with OSHA requirements for construction sites.
On GFI protected generators, the X Series will prevent false sensing of a ground fault which will, in turn, prevent the circuit breaker on the generator from nuisance tripping.
The XRC Series has 10 branch circuit spaces and will allow up to 18 circuits with the use of tandem breakers. If you need more circuits, the XRR Series is also available and allows for 26/36 branch circuits and is available in indoor and outdoor enclosures. Options include a selection of watt meters, for balancing generator load, and flanged inlets for direct generator connection where permitted.
For use with:
* GFI-equipped generators
* Bonded neutral generators
* Separately-derived systemsLike the TRK, the XRK is for installations that require more capacity for heavier loads of 25 amps or more, such as electric water heaters, electric ranges, well pumps, motors, commercial refrigeration, heat pumps and central air conditioning. Suitable for use with larger generators. This panel may be sub-fed from the existing building service panel. However it is NOT normally suitable for use as service entrance equipment. Supplied with a double pole utility breaker and a double pole generator breaker that are interlocked to prevent both from being closed at the same time. This eliminates the danger of backfeeding to the utility, endangering utility repair crews. It also prevents utility power from feeding into your generator and causing damage. Allows manual transfer of individual loads to prevent overloading generator. The installer selects the the proper size branch breakers to add to this panel. Power inlet receptacle and generator meters all provided in panel.

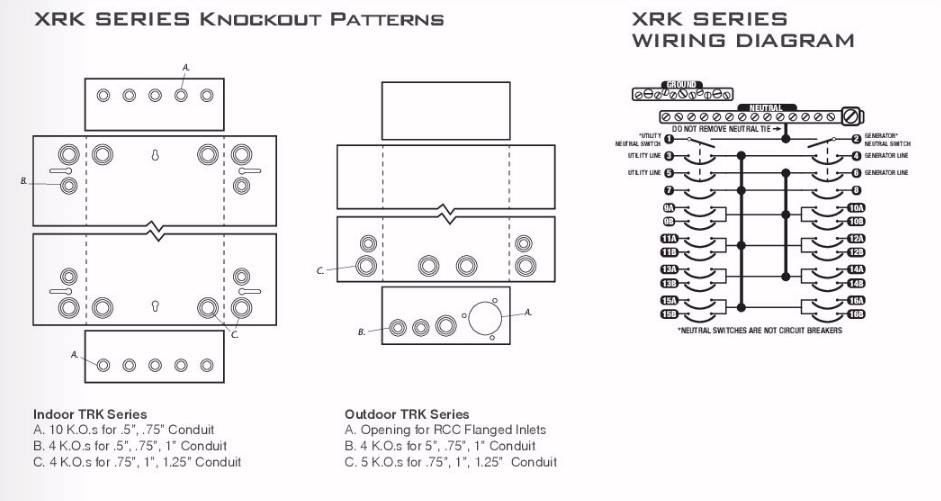

Standard features include NEMA 1 indoor cabinet (NEMA 3R outdoor optional) suitable for surface or flush mounting and tin plated copper bus bars. Accommodates up to ten 1 inch branch circuit breakers or as many as 18 combination 1/2 inch and 1 inch circuit breakers. This panel is UL and cUL Listed for use with any of the following circuit breakers:
- Siemens Type QP, QT, QPH, HQP, QPH, QPHF, QFP, QE, QEH
- Square D Series HOM (100 amp max)
- Westinghouse/Cutler Hammer Series BD, BR, BQ, GFC (100 amp max)
Provided with preinstalled generator breaker, main utility breaker and two meters for generator watts.
Assembled in USA
Dimensions H x W x D (inches): 15-3/4 x 12-3/8 x 3-3/8
Specs and Ordering Table
Eligible discounts will be deducted by cart!
Prices last updated 4/30/2022
Shipping weights start at 25 lbs.
These items normally ship in approximately 12 weeks or less.
| Model No. | Utility Branch Breaker Required in Load Center (by installer) | Max. Generator Input
(Amps) (Watts) |
Male Inlet Installed (click link) |
Works with: Cordsets Inlet Boxes |
Price $ US |
Add to Shopping Cart |
| XRK0503C | 50A | 30A 7,500W |
none | PC3010M,
PC3020M, PC3025M or PC3040M PB30, PBN30 or PR30 |
$266 |
|
| XRK0603C | 60A | 30A 7,500W |
none | PC3010M,
PC3020M, PC3025M or PC3040M PB30, PBN30 or PR30 |
$268 |
|
| XRK0505C | 50A | 50A 12,500W |
none | PC5010,
PC5025, PC5050 PB50 or PR50 |
$272 |
|
| XRK1005C | 100A | 50A 12,500W |
none | PC5010,
PC5020, PC5025, PC5040
or PC5050 PB50, PB50N or PR50 |
$307 |
|
NOTES:
1. A branch breaker provided by the installer must be installed in the upstream load center to feed this sub-panel.
2. Additional models available upon request.NOTE: AS OF MID 2022 THIS PRODUCT IS NOT CURRENTLY AVAILABLE.
