7103


click on thumbnail
image above to enlarge

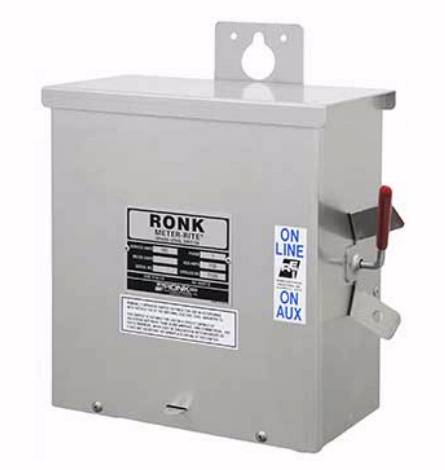

100A Manual Transfer Switch
250V Single Phase 2 pole
Aluminum NEMA 3R Outdoor Enclosure

For use with standby generators to transfer loads between utility power and auxiliary power.  Two position, with quick-make, quick-break contacts designed to minimize contact arcing and prolong contact life.  Aluminum NEMA 3R outdoor enclosure for wall mounting.  Ample wiring space.  Rated for 100 amps at 250 volts.  Lugs for aluminum and copper wire included.  UL listed.  Manually-operated switch suitable for use in accordance with article 702 of the National Electric Code, ANSI/NFPA 70.  This switch is suitable for use on a circuit capable of delivering not more than 10,000 amperes RMS symmetrical, 250 volts maximum.   Made in USA

Specs

Continuous Current Rating	100 amps (100% rating)
Voltage Rating	250Vac
Short-Circuit Withstand	10,000 amps
Wire Range - Line & Generator	1/0 to #14 awg CU-AL one hole lug
Wire Range - Load	1/0 to #14 awg CU-AL four hole lug
Wire Range - Neutral	1/0 to #14 awg CU-AL four hole bar
Motor HP Rating	none
Dimensions	12" W x 6.5" D x 17.62" H add 3" for side mounted handle
Use copper or aluminum wire rated for 75C.



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Power inlet PK30, PK50, 300134 for plugging in generator cord or cables
Generator metering NGV25-SW, MB75, MB125, METERPNL4

A service entrance rated switch must be used if installing directly downstream of power company meter (with no disconnect installed in between).  This switch is not rated for that application.



not service entrance rated Item Number: 7103 Price: $507 Price last updated 10/13/2022 Shipping Weight: 14 lbs. This item normally ships in approximately 4-6 weeks or less.

service entrance rated - unfused not available



---
