Interlocks for Cutler Hammer & Eaton Panels
|
|
|
| by No Outage | by G.I.T. |
Click here for additional
information about these generator interlocks.
Click to see contents of a typical
Interlock Kit.
After selecting the proper interlock go to BOTTOM of table for
Inlet Box/Cordset Kits
or click the following links to
order these additional items:
generator cordset, outdoor
power inlet box, generator load metering, enclosures,
PowerBACK! alert.
If no suitable interlock can be found, or the match is uncertain, click
this link.
Listed to UL 67 by an independent lab for
use in the USA. Not approved for use in Canada.
Selection & Ordering
|
Yellow background items are for use with an additional solar PV breaker |
|
Prices last updated 1/1/2014 |
| Click image below and carefully compare with your load center breaker panel before ordering! |
Main Distance |
Branch Column Spaces |
Part Number Click for Instructions |
Price $ US |
Purchase Button |
| Before
ordering this part number carefully compare the main breaker position
with the 6510, 6512, 6513, 6514 series below
|
1.5" | 2 x any 3/4" sp |
K-6010 | $145 |
|
| 2 x 12
3/4" sp |
KS-6012 | $345 |
|
||
| 2 x 16
3/4" sp |
KS-6013 | $345 |
|
||
| 2 x 21
3/4" sp |
KS-6014 | $345 |
|
||
 |
2.37" | 2 x any 1" sp |
K-6310 | $145 |
|
 |
6.37" | 2 x any 1" |
K-6410 | $245 |
|
 |
2.25" | 2 x any 3/4" sp |
K-6110 | $145 |
|
 |
4.75" | 2 x any 3/4" sp |
K-6110 MODIFIED 4.75 | $145 |
|
| Before
ordering this part number carefully compare the main breaker position
with the 6010, 6012, 6013, 6014 series above

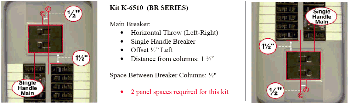

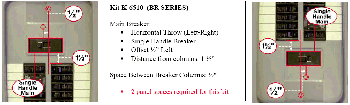

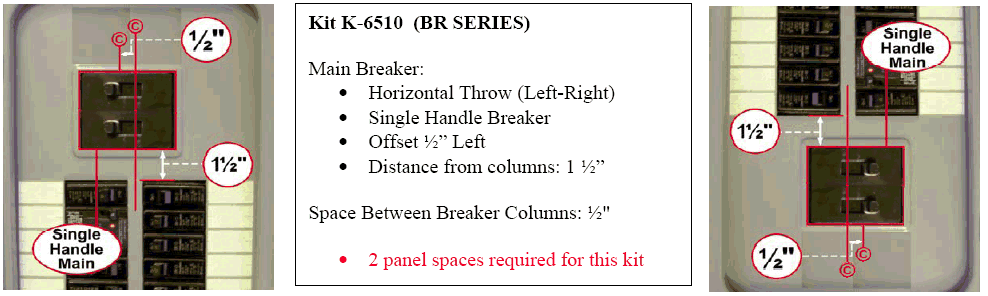

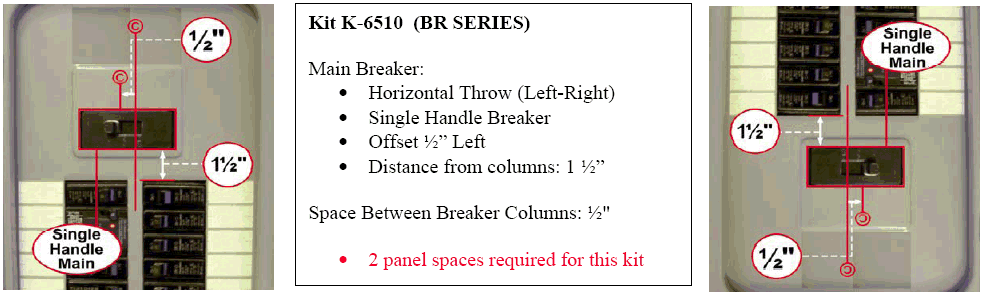

NOTE: K-6510 fits both the CH
and BR style panels
|
1.25-1.5" | 2 x any 3/4" sp 1" sp |
K-6510 | $145 |
|
| 2 x
12
3/4" sp |
KS-6512-CH | $345 |
|
||
| 2 x 16
3/4" sp |
KS-6513-CH | $345 |
|
||
| 2 x
21 3/4" sp |
KS-6414-CH | $345 |
|
||
| 2 x
10
1" sp |
KS-6512 | $345 |
|
||
| 2 x 15
1" sp |
KS-6513 | $345 |
|
||
| 2 x
20 1" sp |
KS-6414 | $345 |
|
||
 |
CH-1 | $145 |
|
||
 |
5.25" | 1 x any 1" sp |
K-6610 | $145 |
|
 |
3.75" | 1 x any 3/4" sp |
K-6710 | $145 |
|
 |
4.75" | 1 x any 3/4" sp |

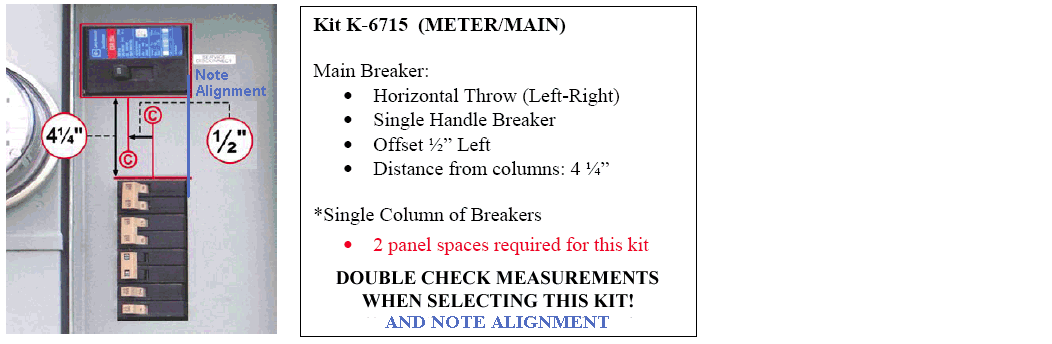

K-6715 | $145 |
|
 |
4.25" | 1 x any 1" sp |
K-6716 | $145 |
|
 |
0" | 1 x any 1" sp |
K-1315 | $145 |
|
|
0" | 1 x any 1" sp |
K-9010 | $145 |
|
 |
0" | 1 x any 1" sp |
K-9011 | $145 |
|
 |
1" | 1 x any 1" sp |
K-4510 | $145 |
|
 |
0" | 1 x any 1" sp |
K-9010-R1 | ? |
|
  |
0" | 1 x any 3/4" sp |
K-9210 | $145 |
|
 |
0" | 1 x any 3/4" sp |
K-9210 RECESSED K-9210-R1 |
? |
|
| Power Inlet Box/Cordset Kits Prices last updated 9/7/2025 Shipping weights start at 8 lbs. These items normally ship in approximately 1 week or less. | |||||
 |
--- | --- | PBPC20 (20A L1420) |
$103 |
|
| --- | --- | PBPC30 (30A L1430) |
$121 |
|
|
 |
--- | --- | PBPC50CS (50A CS6365) |
$358 |
|
| --- | --- | PBPC50N (50A NEMA1450) |
$231 |
|
|
The above listed interlocks are manufactured by Generator Interlock Technologies LLC to be compatible with the panels shown and they are tested by an independent lab for UL compliance.
