(formerly PTO15-2S)


generator on optional 3-point hitch with shaft LED digital meter specs brochure
click thumbnail image above to enlarge

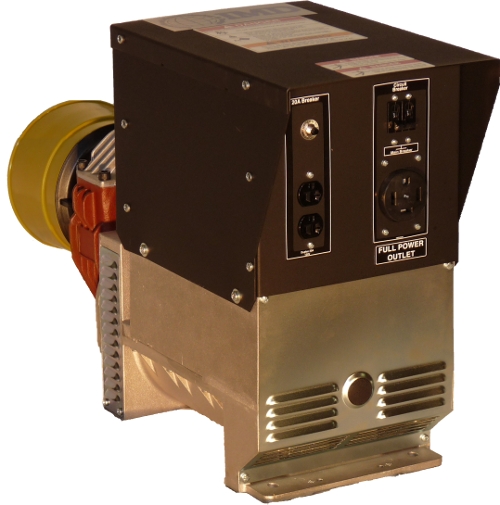

16KW Power Take-Off Generator
120/240V 1-phase

PTO Generators are designed as a standby electrical power supply for farm and home applications or any site that has an engine with a power take-off.  They can utilize a properly sized power take-off from tractors, bulldozers, or trucks as the prime mover.  Units are equipped with a gear box ratio design that operates generator at synchronous speed with a low speed 540 rpm pto shaft input.  IMD has been making PTO generators in South Carolina since 1998.

NoOutage is a certified IMD dealer.  Click to verify.


Standard Features

* High quality PTO generator
* Heavy duty single-phase, brushless design for maintenance free performance.
* 100% copper winding, low distortion alternator (THD<5%) for high quality power output, insulation class H.
* Lifetime pre-sealed maintenance-free bearings.
* Aluminum and steel housing for a maximum in durability and lightweight.
* Heavy duty cast iron single stage gearbox.
* Magnetic circuit breaker with individual circuit protection for safety and accurate overload protection.
* LED digital meter displays Volts, Hertz and load facing the tractor for easy speed adjustment.
* Drip-proof design.
* Simultaneous 120V and 240V output.
* Full power outlet.
* Standard 1-3/8", 6-spline input shaft.


Optional Features

* Automatic Voltage Regulator (AVR) regulates output voltage + 1%.
* Hitch, trailer, measuring devices.



Rated AC Power 16 kW
Surge AC Power 32 kW
Circuit Breaker Rating 66 amps
Rated Voltage 120/240 V, 1 phase
Alternator brushless design, copper windings
Voltage Regulation +10% with capacitor regulator
+ 1% with optional automatic voltage regulator
Receptacles at 120V (qty) (2) NEMA 5-20R
Receptacles at 240V (qty) (1) NEMA 14-60R
PTO Speed 540 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 30 hp *
Manufacturer's Warranty 2 year

* A lower PTO shaft hp rating is acceptable but electrical output will be proportionally less.

   Concerning use in Canada, this product is built from CSA certified components (with the exception of the
   alternator end) but is not CSA certified as a complete assembly.  Therfore, it cannot be used on construction
   sites in Canada.  But it is normally acceptable for residential and farm use.


Customers who purchased this product also ordered:
(click underlined words to see product pages)
Shielded Universal PTO Shaft, 1-3/8" six spline both ends DL26-T40
Trailer Kit  with Tires for off-highway use
Three Point Hitch Kit, Cat. 1 or Cat. 2 3PHK
Service entrance transfer switch panel 200A or 150A TWB2006CR or TWB1506CR (compact breaker type).
Transfer switch 200A 7205A or 7215 (large enough to install High Capacity Inlet Kit on side)
High Capacity Power Inlet Kit
Welding Cable

"Free freight" normally indicates that standard ground shipping is included at no extra cost to the USA 48 states.  However, since IMD ships from the east coast our shopping cart will apply an adder for destinations west of the Mississippi to compensate for these long distance deliveries.  Thus, for IMD "free freight" is really true only for the 26 eastern states.  This statement overrides the note below.



Item Number: PTO162S
Price: $2,453
Price last updated 5/1/2023
Shipping Weight: 185 lbs.
This item ships with free ground freight to the USA 48 states.
This item normally ships in approximately 2-3 weeks or less.
