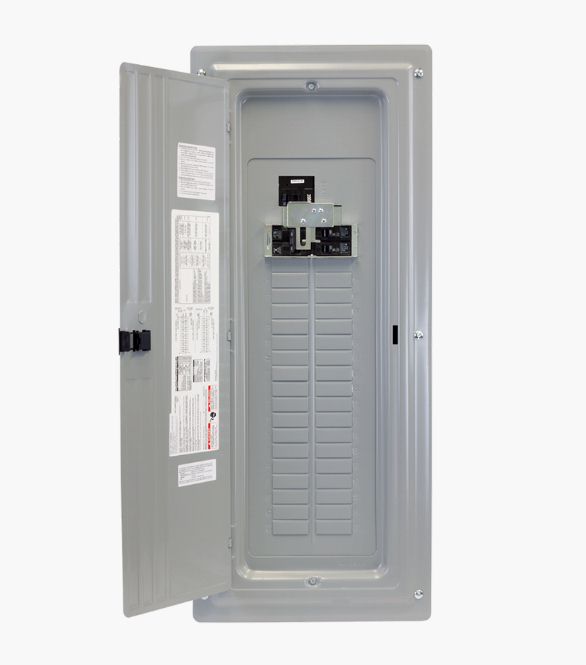

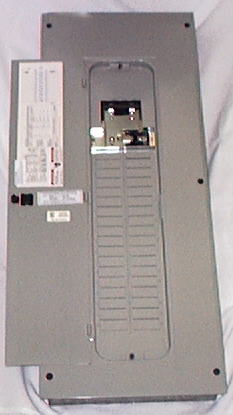

Manual Transfer Panel
200A Utility Main Breaker
30A-125A Generator Breaker

with meters

For installations that require more capacity for heavier loads of 25 amps or more, such as electric water heaters, electric ranges, well pumps, motors, commercial refrigeration, heat pumps and central air conditioning.  Suitable for use with larger generators.  This is a generator-ready main breaker load center AND manual transfer switch all in one unit.  This panel may be sub-fed from the existing building panel, or may be used as service entrance equipment to completely replace the existing building panel.  Supplied with a double pole 200 amp main utility breaker and a double pole generator breaker that are interlocked to prevent both from being closed at the same time.  Click here to see interlock action.   This eliminates the danger of backfeeding to the utility, endangering utility repair crews.  It also prevents utility power from feeding into your generator and causing damage.  Allows manual transfer of individual loads to prevent overloading generator.  The installer selects the the proper size branch breakers to add to this panel.  Wiring space (for hard wiring out to separate raintight power inlet box) provided in panel.

Standard features include NEMA 1 indoor cabinet suitable for surface or flush mounting, split neutral feature which places a neutral next to each circuit breaker, heavy duty copper bus bars and adjustable trim.  Service entrance rated which allows this to be connected directly to your power company meter.  Accommodates up to 36 - 1 inch branch circuit breakers.  Many 1/2 inch breakers also fit.  This panel is UL Listed for use with any of the following circuit breakers:

Provided with preinstalled 200 amp main utility breaker and generator breaker for generators up to 30,000 watts.  Use with raintight power inlet box purchased separately.  UL Listed.  Made in USA

Dimensions H x W x D (inches): 39 x 14.38 x 3.94


Specs and Ordering Table

Model No. Utility Main Breaker Generator Breaker Max. Generator Input (Amps)
Generator Meters Works with:

Inlet Boxes
$ US
Add to Shopping Cart
TTV2003C 200A 30A 30A
YES PC3010M, PC3020M, PC3025M or PC3040M
PB30, PBN30 or PR30

TTV2005C 200A 50A 50A
YES PC5010, PC5020, PC5025, PC5040 or PC5050
PB50, PB50N or PR50

TTV2006C 200A 60A 60A
YES hi cap inlet 300134-1

TTV2010D 200A 100A 100A
NO hi cap inlet 300134-1
metering METERPNL4

TTV2012D 200A 125A 125A
NO hi cap inlet 300134-1
metering METERPNL4

1.  This panel may be used as a main service entrance load center.
2.  Additional models available upon request.
