THIS SWITCH DISCONTINUED AND
REPLACED WITH PRO/TRAN^® 2 SERIES MODEL 310C


click on thumbnail image
above to enlarge

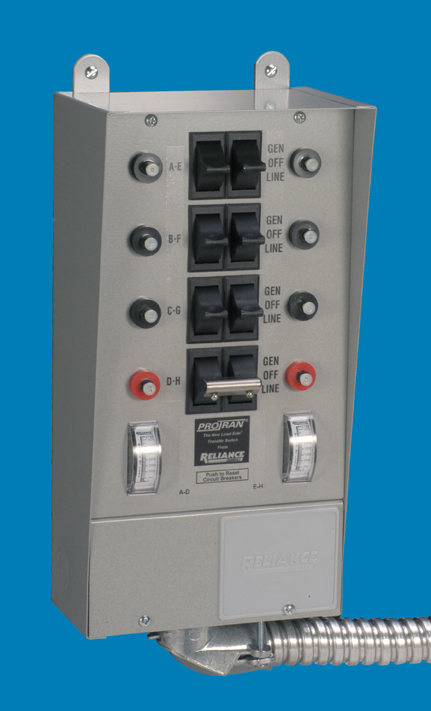

Manual Transfer Switch
Pro/Tran^® by Reliance Controls

Easy to install and operate, connects portable generator to residential load center.  Allows manual transfer of individual loads to prevent overloading generator.   Each individual circuit can be transferred separately and only as needed.   Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard.

Click here to watch a video explaining how to install and operate the similar 6 circuit transfer switch and optional inlet box.



Specifications



Each circuit provided with non-defeatable (break-before-make) double throw switch protected with a resettable circuit breaker.  Dual watt meters provided for balancing generator load.  The 1 x 18 inch flexible conduit is pre-wired for easy connection to existing residential load center panel.  Installs in less than an hour, without pulling the electric meter or installing a sub-panel.  Suitable only for circuits protected with up to 20 amp breakers or fuses.  UL listed and CSA certified.  Exclusive Pro/Tran^® Reliance Controls 24 month warranty.  Made in USA



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Cordset for connecting generator PC3010, PC3025 or PC3050
Inlet box PB30 or PR30
Straight blade plug modification for generators without twist-lock receptacle MOD6-20P
Clear protective cover for switch CK10
To power a 30A 240V water heater add the CSR302 switch or go with the Q310CE switch





---
