LV800/1500
(supersedes LV1500)

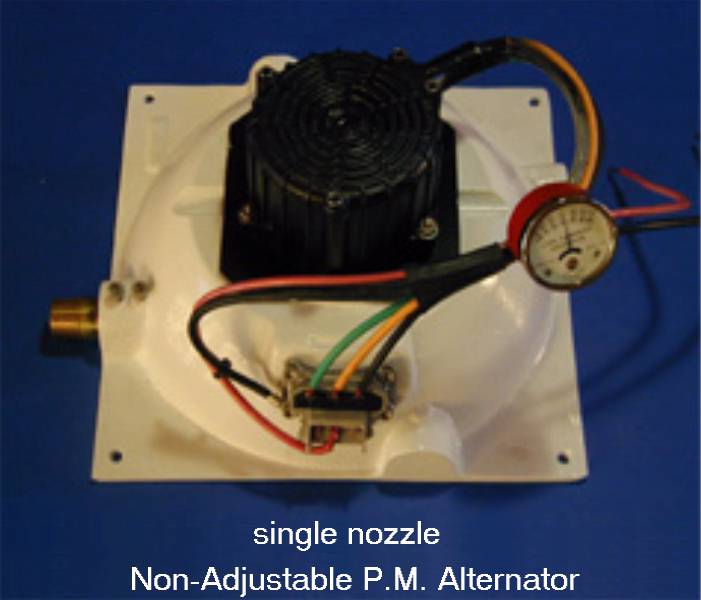

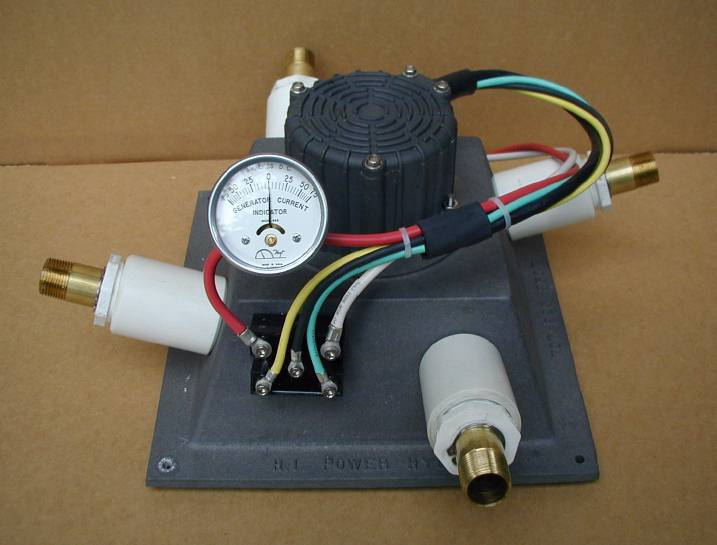

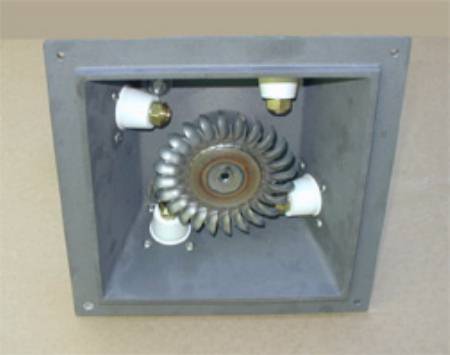

Single-nozzle turbine with square housing (stainless steel Turgo runner)	Bottom view of four-nozzle turbine with stainless steel Turgo runner	Single-nozzle turbine with round Harris housing (Pelton runner)	Bottom view of single-nozzle turbine with Pelton runner	Typical electrical system configuration
click thumbnail image above to enlarge

Hydroelectric Turbine Generator
medium & high head
non-adjustable permanent magnet alternator
with Turgo or Pelton wheel & up to 4 nozzles
12/24/48/120Vdc

This is HI-Power's latest and most efficient low-voltage brushless permanent magnet generator.  The LV800/1500 hydroelectric battery charger uses a Hartvigsen Turgo stainless steel 4" wheel and a special sealed permanent magnet alternator on an anodized square aluminum housing.   (Also available with Harris Pelton wheel by request in round housing.  But the Pelton is slightly less efficient at higher flows.)  Housing is 12" square and fits into a 10.25" square opening.  All hardware is stainless steel and the nozzles are brass.  This model is available with 1, 2, 3 or 4 nozzles installed at the factory.   Nozzle(s) can be up to 5/8 inch in diameter.  A 3/4" NPT male brass tube connection sticks through the housing for installer provided penstock and valve connections.  Three feet of 1" flexible hose is provided for each nozzle.  The rectifier is mounted and water cooled.  Includes induction dc ammeter with instructions is provided to assist with connections.

These units come standard with a permanent magnet brushless alternator with no adjustability.  This permanent magnet (P.M.) alternator is more efficient than the old Motorcraft alternator, produces less heat, and therefore lasts longer.  Unit can be ordered for common 12Vdc, 24Vdc, 48Vdc and special 120Vdc for transmitting power long distances.  An MPPT charge controller such as the Outback Power MX-60 can be used to step down the 120Vdc to charge a 12-48Vdc battery bank.

The alternating current from the alternator goes through the water-cooled rectifier to produce the DC output.  The unit comes complete with an induction ammeter. We recommend fusing the wire near the batteries.

Factory warranty on the unit for 2 years.

The alternator has two sealed 6203 bearings that should be changed every 4 - 10 years, depending on use and rpm.  These are standard bearing from most auto parts stores for around $15 each.  Replacement requires a 3-prong puller.  The turbine can also be sent back to the manufacturer for bearing replacement at a very nominal cost.

Maximum achievable power output is approximately 1500 watts.  Pressure and flow combinations resulting in a power higher than this may overheat the alternator and cause the permanent magnets to lose magnetism.  Made in USA



OUTPUT IN WATTS & FLOW IN GPM PER NOZZLE
EFFICIENCY IN %
versus nozzle size and head pressure
Output listed below is for similar unit with stainless steel Turgo runner and 3/4" nozzle holder.
NOTE: The grayed-out numbers below indicate that the low head LV400/800 will have higher output.

Please tell us your head, flow, pipe size and length, and battery voltage when ordering using the drop-down menus below.

DC cable length and voltage drop must be evaluated carefully when laying out system.  Click here for our simple voltage drop calculator.  If the turbine will be located far from the battery bank, voltage drop and wire cost can be reduced by using the 120Vdc generator with a step-down controller (such as the FM60 or FM80) at the battery bank.



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Pressure gauge PRESSGAUGE
Spare nozzles HARRIS-NOZ
Diversion load DLOAD-AIR, DLOAD-WTR
Diversion load controller of proper voltage & current rating such as C-35, C-40, C-60.
Step-down voltage controller (if ordering the 120Vdc version) FM60 or FM80.
Inverter for Off-grid MS-SERIES or FX-VFX, or grid-tie GTFX-GVFX operation.
Battery bank.

Select turbine options and press Add to Cart		Select site parameters and press Add to Cart
Select voltage... 12Vdc (limited to 600W) 24Vdc 48Vdc 120Vdc which requires 120' of head pressure minimum Select number of nozzles... 1 brass nozzle with 3/4 inch NPT connection 2 brass nozzles with 3/4 inch NPT connection (add $59) 3 brass nozzles with 3/4 inch NPT connection (add $117) 4 brass nozzles with 3/4 inch NPT connection (add $174) select number of nozzles for me (add $174) Select nozzle size... 1/8 inch diameter nozzle 3/16 inch diameter nozzle 1/4 inch diameter nozzle 5/16 inch diameter nozzle 3/8 inch diameter nozzle 7/16 inch diameter nozzle 1/2 inch diameter nozzle 9/16 inch diameter nozzle 5/8 inch diameter nozzle select nozzle diameter for me Select runner... standard stainless steel Turgo runner special Harris bronze Pelton runner (add $100) special Harris stainless steel Pelton runner (add $190) Select max rating... 800W max rating LV800MH 1500W max rating LV1500MH (add $449) Item Number: LV800/1500 Price: $1,549 Price last updated 10/1/2020 Shipping Weight: 30 lbs. This item normally ships in approximately 2 weeks or less.		Select static head pressure... 4ft 1.7psi static head 5ft 2.2psi static head 6ft 2.6psi static head 8ft 3.5psi static head 10ft 4.3psi static head 12ft 5.2psi static head 15ft 6.5psi static head 20ft 8.7psi static head 25ft 11psi static head 30ft 13psi static head 35ft 15psi static head 40ft 17psi static head 50ft 22psi static head 60ft 26psi static head 70ft 30psi static head 80ft 35psi static head 100ft 43psi static head 125ft 54psi static head 150ft 65psi static head 175ft 76psi static head 200ft 87psi static head 250ft 108psi static head 300ft 130psi static head 350ft 152psi static head 400ft 173psi static head 500ft 217psi static head Select design flow... 2gpm design flow 3gpm design flow 4gpm design flow 5gpm design flow 6gpm design flow 7gpm design flow 8gpm design flow 10gpm design flow 12gpm design flow 15gpm design flow 17gpm design flow 20gpm design flow 25gpm design flow 30gpm design flow 35gpm design flow 40gpm design flow 50gpm design flow 60gpm design flow 80gpm design flow 100gpm design flow 125gpm design flow 150gpm design flow 175gpm design flow 200gpm design flow 250gpm design flow 300gpm design flow 350gpm design flow 400gpm design flow 500gpm design flow Select min flow... min flow same as design flow 0gpm min flow 2gpm min flow 3gpm min flow 4gpm min flow 5gpm min flow 6gpm min flow 7gpm min flow 8gpm min flow 10gpm min flow 12gpm min flow 15gpm min flow 17gpm min flow 20gpm min flow 25gpm min flow 30gpm min flow 35gpm min flow 40gpm min flow 50gpm min flow 60gpm min flow 80gpm min flow 100gpm min flow 125gpm min flow 150gpm min flow 175gpm min flow 200gpm min flow 250gpm min flow 300gpm min flow 350gpm min flow 400gpm min flow 500gpm min flow Select max flow... max flow same as design flow 3gpm max flow 4gpm max flow 5gpm max flow 6gpm max flow 7gpm max flow 8gpm max flow 10gpm max flow 12gpm max flow 15gpm max flow 17gpm max flow 20gpm max flow 25gpm max flow 30gpm max flow 35gpm max flow 40gpm max flow 50gpm max flow 60gpm max flow 80gpm max flow 100gpm max flow 125gpm max flow 150gpm max flow 175gpm max flow 200gpm max flow 250gpm max flow 300gpm max flow 350gpm max flow 400gpm max flow 500gpm max flow Select pipe length... 1ft pipe length 5ft pipe length 10ft pipe length 15ft pipe length 20ft pipe length 25ft pipe length 30ft pipe length 35ft pipe length 40ft pipe length 45ft pipe length 50ft pipe length 50ft pipe length 60ft pipe length 80ft pipe length 100ft pipe length 125ft pipe length 150ft pipe length 175ft pipe length 200ft pipe length 250ft pipe length 300ft pipe length 350ft pipe length 400ft pipe length 500ft pipe length 600ft pipe length 700ft pipe length 800ft pipe length 1000ft pipe length 1500ft pipe length 2000ft pipe length 3000ft pipe length 4000ft pipe length 5000ft pipe length 6000ft pipe length 7000ft pipe length 8000ft pipe length over 8000ft pipe length Select pipe diameter... 1/2 inch diameter pipe 3/4 inch diameter pipe 1 inch diameter pipe 1-1/4 inch diameter pipe 1-1/2 inch diameter pipe 2 inch diameter pipe 2-1/2 inch diameter pipe 3 inch diameter pipe 4 inch diameter pipe 5 inch diameter pipe 6 inch diameter pipe Select wire distance... 5ft turbine to battery bank 10ft turbine to battery bank 15ft turbine to battery bank 20ft turbine to battery bank 25ft turbine to battery bank 30ft turbine to battery bank 40ft turbine to battery bank 50ft turbine to battery bank 60ft turbine to battery bank 70ft turbine to battery bank 80ft turbine to battery bank 90ft turbine to battery bank 100ft turbine to battery bank 150ft turbine to battery bank 200ft turbine to battery bank 250ft turbine to battery bank 300ft turbine to battery bank 400ft turbine to battery bank 500ft turbine to battery bank 600ft turbine to battery bank 700ft turbine to battery bank 800ft turbine to battery bank 900ft turbine to battery bank 1000ft turbine to battery bank Over 1000ft turbine to battery bank







---
